Painting

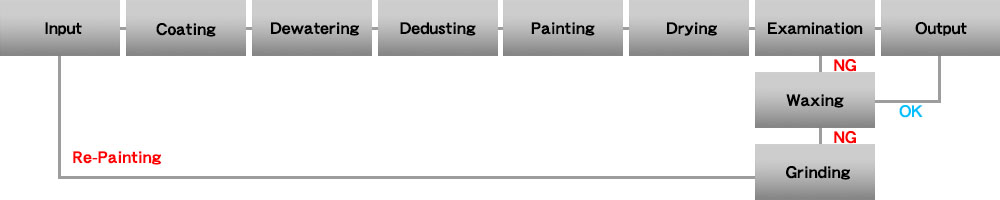

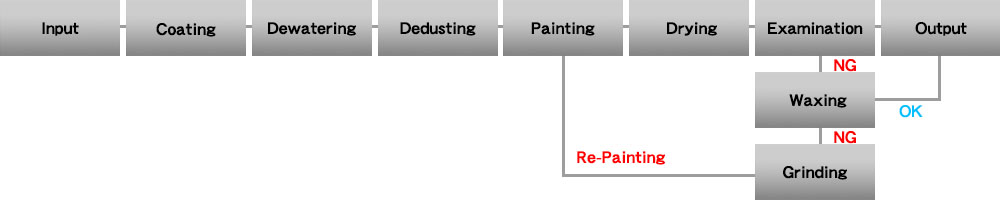

Flow Diagram of Painting for Plastic

Flow Diagram of Painting for Plastic

Flow Diagram of Painting for Metal Products

Flow Diagram of Painting for Metal Products

Painting Property

Material of Products

Characteristic of Painting

 Main Painting Property

 Appearance

 Adherence

Flexibility

Water/Damp-proof

Rust-proof

 Wearability

 Petrol-resistance Weatherability

Others

 Plastic
( i.e.ABS )

Two-Component Formula
( Acrylic paint )

 ◎ ◎ 〇 ◎ ━ △ △ ◎

Steel
( i.e.SPCC )

  Single-Component Formula
( Epoxy paint, Varnish Aluminum paint )		 ◎ ◎ 〇 ◎ ◎ ◎ ◎ ◎

Impact resistance
Aluminum
( i.e.ACD3 )		 ◎ ◎ 〇 ◎ ◎ ◎ 〇 ◎

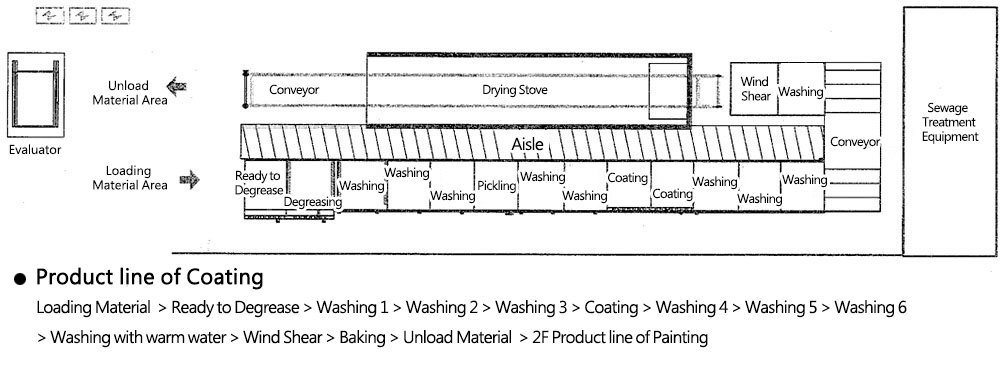

Flowchart(Coating)

流程 意示圖 (表面處理)

Feature:

  • Adapting the chemical agent that qualifies the environment standard.
  • Adding ultrasonic machine in the degreasing bath ensure deeply to remove the dirt on the material.
  • To ensure the clearance of the material, not only wash with pure water but also has 6 steps of the washing progress(3 steps before coating & 3 steps after the coating ).
  • Owing to the cage moves automatically by PLC system, it can control the progressing time in details.
  • The products which produce by above equipment can tolerate the salt spray test up to 2,000 hours(SST 2,000H).

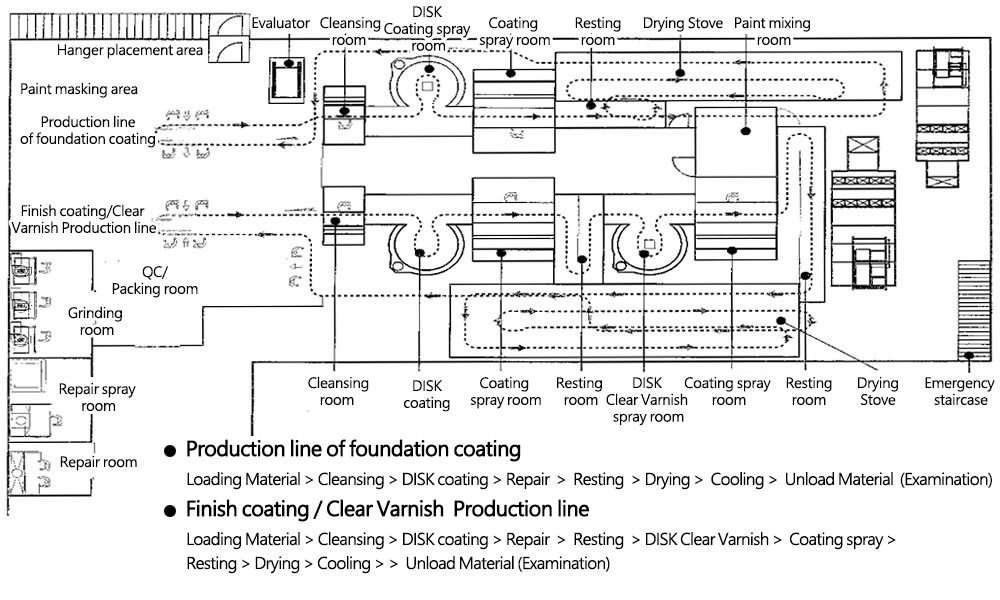

Flowchart(Painting)

流程 意示圖 (塗裝)

Feature:

  • Dividing into two production line for the small-volume production of a wide range of different items.
    The length of the foundation coating is 130m, and the finish coating & clear varnish production line is 180m long.
  • Setting DISK electrostatic spray coater to matching operator hand spraying for both efficiency and quality concern.
  • Setting air conditioner in the working area and isolated entirely for quality consistently and a comfortable working environment also.

Sample of Product

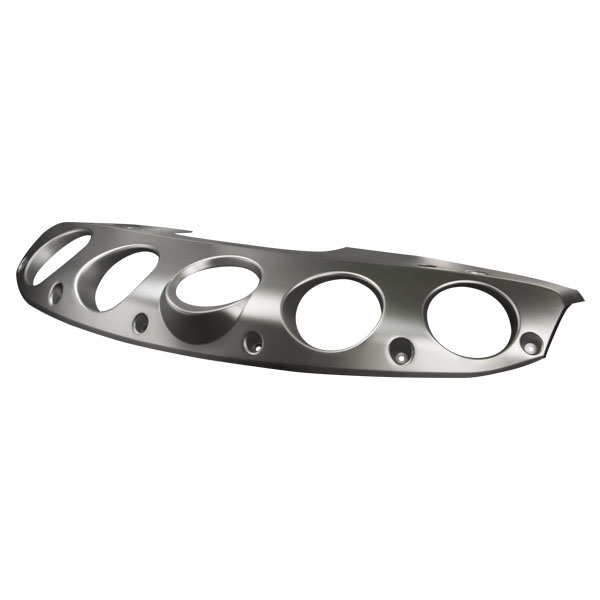

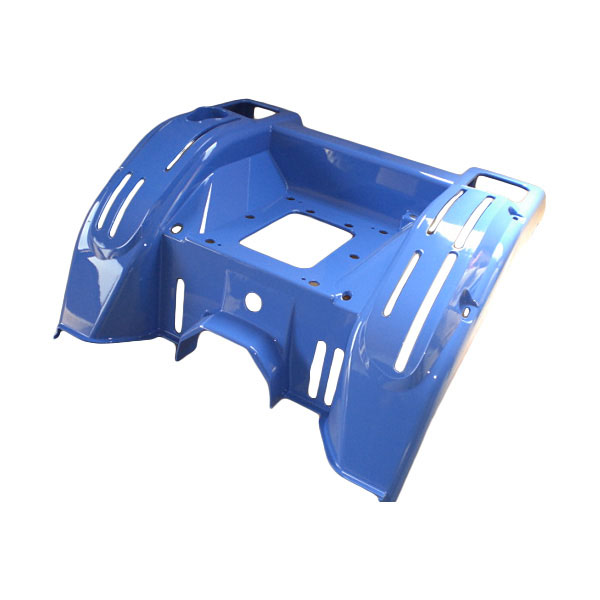

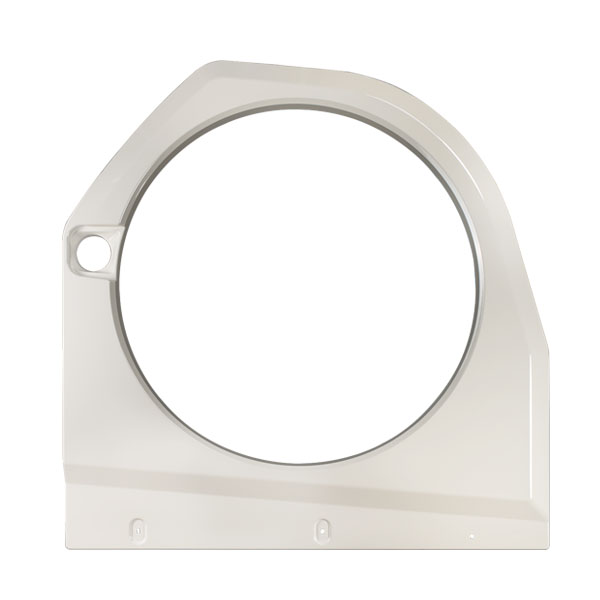

  Cover of Agricultural Machinery Cover of Agricultural Machinery Fender of Tractor
Item Cover of Agricultural Machinery Cover of Agricultural
Machinery 		Fender of Tractor
Processing
method		 Plastic Injection + Coating Plastic Injection + Coating Plastic Injection + Coating
Material ABS ABS ABS
Size 985*370*160 1105*1060*85 1030*800*505

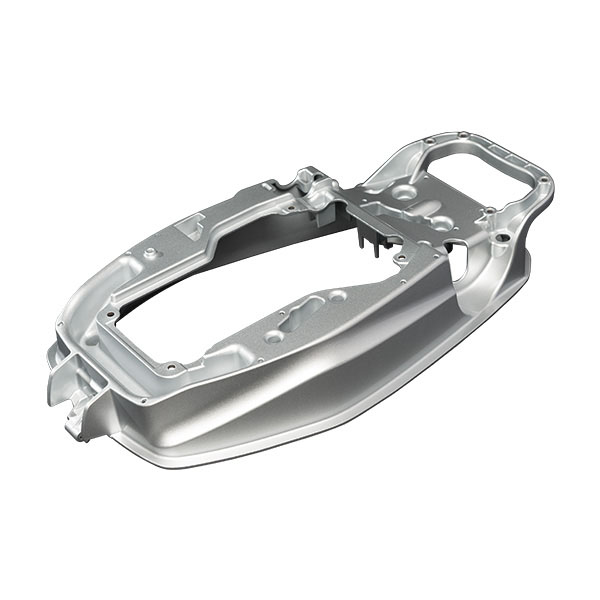

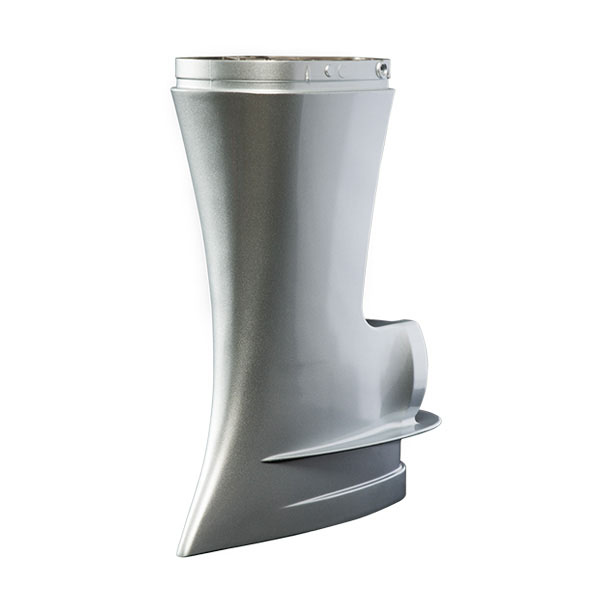

  Cover of Outboat Gear Case of Outboat Parts of Outboat
Item Cover of Outboat Gear Case of Outboat Parts of Outboat
Processing
method		 Founding + Coating Founding + Coating Founding + Coating
Material ADC3T ADC3T ADC3T
Size 195*90*445 160*70*220 180*110*370

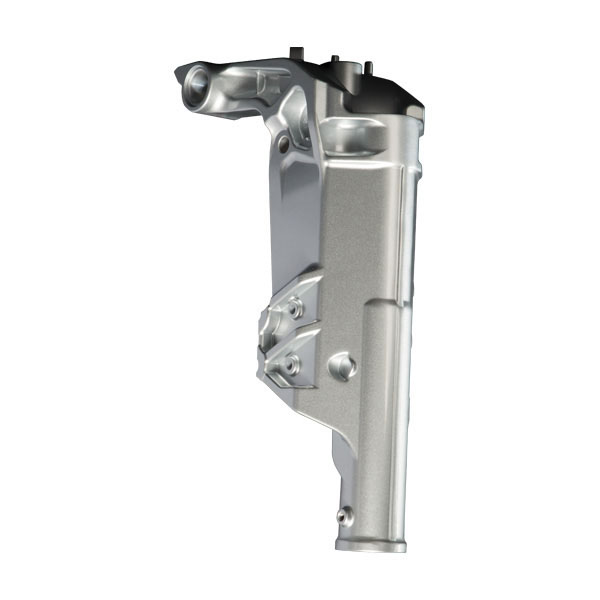

  Parts of Outboat Parts of Outboat
Item Parts of Outboat Parts of Outboat
Processing
method		 Founding + Coating Founding + Coating
Material ADC3T ADC3T
Size 600*280*90 300*150*400
